Grizzly G1531 6" x 80" Edge Sander Product Description:
- 1-1/2 H.P. TEFC motor, 110V & 220V, prewired for 220V
- 22" x 10-1/2" cast iron table with miter gauge
- 4" dust port
- 6" x 80" Belt
- Graphite coated platen: 6-3/4" x 29-3/4"
Product Description

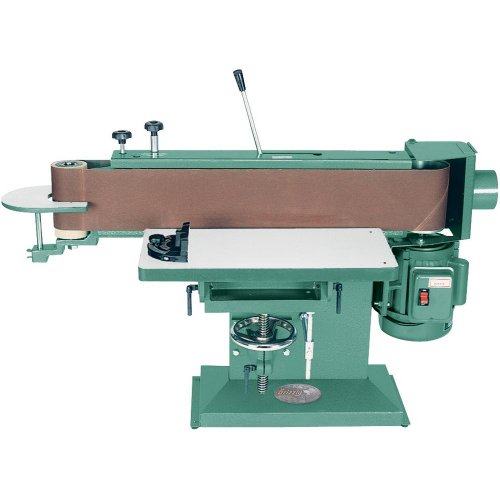

The "heart-and-soul" of custom and production cabinet shops around the country! The Model G1531 offers 30" of platen-backed sanding surface - perfect for finishing and sanding door edges and long stock. Curved panels can be sanded quickly and easily using the height-adjustable contoured support table. Features convenient adjustment knobs, quick belt release, shielded ball bearings, graphite-coated platen, and built-in dust hood. Specifications: • Motor: 1-1/2 HP, 110V/220V, TEFC, single-phase, prewired for 220V • Sanding belt size: 6" x 80" • Graphite coated platen: 6-3/4" x 29-3/4" • 22" x 10-1/2" cast iron table with miter block • Table travel: 6" • Table tilts from +60 deg. to -60 deg. • Contour sanding table 4-1/4" x 8", adjustable vertically 3-1/2" • 1725 RPM motor delivers an 1800 FPM belt speed • ON/OFF switch with removable key • 4" dust port • Powder coated paint • Approximate shipping weight: 221 lbs. • Overall size: 47" W x 17-1/2" D x 34-1/2" H
Customer Reviews
Most helpful customer reviews
15 of 15 people found the following review helpful.
Gets the job done
By Leuf
Let me start by saying that there are no shortage of different types of sanders on the market. And edge sander is one of the few that live up to the promise of saving you tremendous amounts of time while delivering better quality. If you have the room for one I highly recommend getting one, and this is the least expensive option.I'm very happy with the operation of the unit in it's normal function, sanding at 90 degrees. Getting the belts on/off and tracking properly is easy.The main shortcoming is the support of the table and angling of the table. While the Grizzly design promises to be easier to move up and down than other options with it's wheel adjustment, it just doesn't lock rigidly in place, especially if you raise it up. The locking on the support arm requires a wrench, but you can replace that bolt with a 5 star knob with a 1" stud which makes things easier. For angling the table, the pivot point is not inline with the table which means it gets closer or further from the belt as you change the angle. The mounting of the table is in slots so you can move it, but this is a pain.Another shortcoming is that the dust shroud on the end extends out in front of the belt which gets in the way of long stock. It's not easy to remove it, four screws - two of which are hard to get to. Plan on having to alter the shroud.My experience is that Grizzly likes to make the specs of their machines look great on paper, but often at the expense of the usability of the machine. In this case it doesn't stop the machine from being usable for its primary purpose. But if you intend to often be tilting the table I recommend either looking elsewhere or plan on building your own support mechanism. The table itself is excellent. The machine itself is invaluable.
3 of 3 people found the following review helpful.
Excellent machine
By sjl
I don't write many reviews, but given that I have used other product reviews I feel I should contribute. I bought this machine for use in a home shop. The machine came well packed on a pallet. Luckly I was able to get help both loading and unloading from my minivan as it is heavy. I built my own custom wood stand, so I was able to adjust to my prefered work height. The machine is built of hefty cast iron and ran smoothly without adjustment. My only modifications were to add a second dust collector at the edge of the table and modify the dust hood with a flap door that allows me to sand the edge of an 8ft board. The machine has worked without a hitch, with good dust collection and stays in adjustment between uses. This machine does not oscillate but I find that I free sand most boards without relying on the table so oscilation would not add much benifit to me. If I was using the table alot, I would a second rod as a locking mechanism to the table. I tried the end table for the sanding drum and found it too much hassel for routine use. (I like my oscillating spindle sander better.) If I really needed to use the drum sander I would add a secondary table and use the end bracket as extra support.....I feel the price benifit of this machine is high......have fun, work safe.
